Solder Paste Inspection Solutions - MEK

5D Solder Paste Inspection System S2

5D Solder Paste Inspection System S2

5D Solder Paste Inspection System S2

5D Solder Paste Inspection System S2

5D Solder Paste Inspection System S2

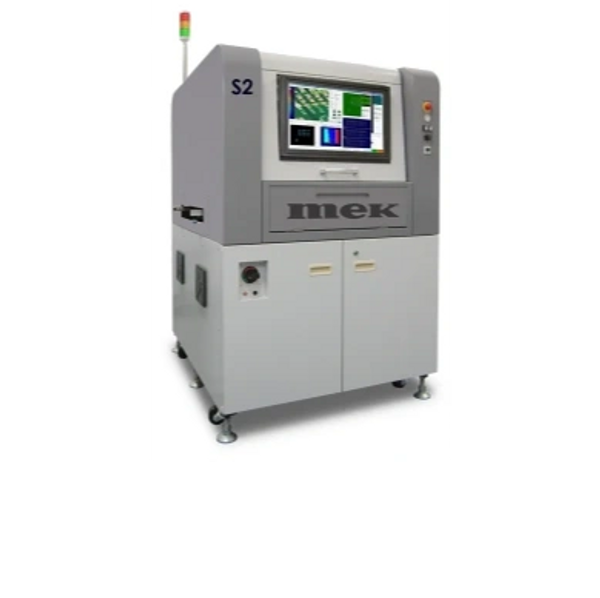

 5D Solder Paste Inspection System

  • Maximum PCB Size: 510 mm x 460 mm 20.1 inch x 18.1 inch
  •  Minimum PCB Thickness: Min  0.3mm (11.8 mils)   to Max 4.0mm (157.5 mils)
  • Minimum component size:  01005 chip 18/9 micron lens 008005 with optional 12/6 micron lens
  • Minimum Pad SIze:  200µm (4 mils) diameter in normal mode (18 Micron lens) 150 micron (12 micron lens)
  • Maximum Paste Height: 600µm (23.6 mils)
  • Maximum PCB Warp:   ±6mm (240 mils)
  • Camera:  Patented advanced 5D sensor
  • Lens Type:  High Grade Telecentric
