Printing, Depanelling and Marking Solutions - Asys

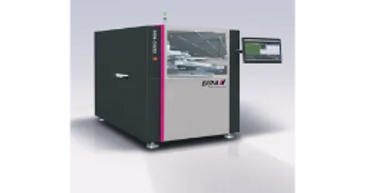

EKRA Paste Printer

INSIGNUM – Marking & Reading Systems

DIVISIO De-paneling Solution

  • Print Format : up to 510 x 510 mm
  • Frame Size: 450 x 450mm to 800 x 900 mm
  • PCB Thickness: < 3mm
  • Alignment repeatability: ± 12,5 µm @ 6 Sigma
  • Cycle Time: 11 / 9 / 7s+ Print Time
  • Print Speed: 9 - 300 mm/s
  • Print Pressure: 10 - 250 N

DIVISIO De-paneling Solution

INSIGNUM – Marking & Reading Systems

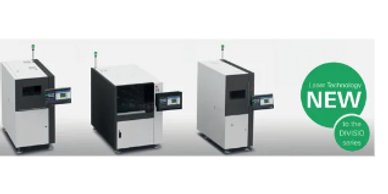

DIVISIO De-paneling Solution



  • Various depanelling options like Sawing, Routing or Laser cutting.
  • Precision of 10µm.

INSIGNUM – Marking & Reading Systems

INSIGNUM – Marking & Reading Systems

INSIGNUM – Marking & Reading Systems

  • Laser Marking Systems - The right laser, whether CO2 or fiber laser, can be integrated for every application. A variety of materials such as solder resists, metals, plastics or ceramics can be processed.
  • Labeling Systems - Choose between label printing with a thermal transfer printer or our combined laser label system, which marks and cuts the label size individually in only one step
  • Reading Systems - You only want to verify the panel code or you want to use multiple panel codes in shortest time? The codes are applied on one or both sides? In our portfolio of reading systems, we offer flexible and user-friendly solutions, always in combination with a suitable connection to the subsequent process or to an MES system.
