Assembly Station AOI and CCI - MEK

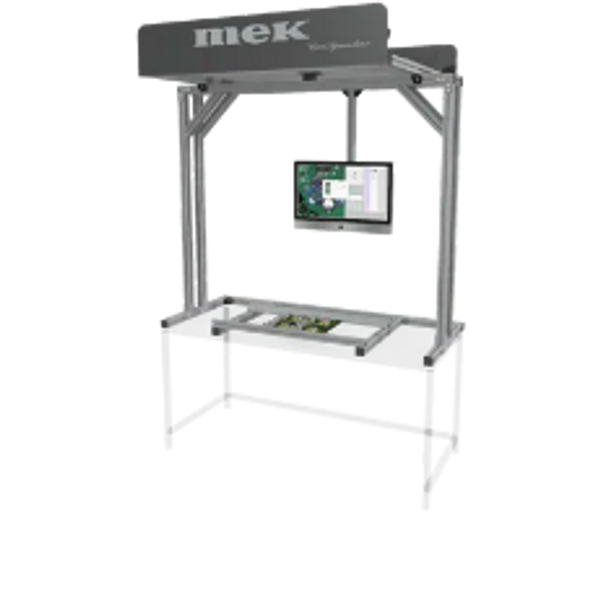

VeriSpector- Assembly Station AOI

VeriSpector- Assembly Station AOI

VeriSpector- Assembly Station AOI

VeriSpector- Assembly Station AOI

VeriSpector- Assembly Station AOI

  Inline / Offline Assembly Station  AOI

  • PCB Size: Max Size: 750x500mm (29.5"x19.7") For smaller PCB sizes, optical zoom can be used to further increase the resolution: For PCB’s down to 375x250mm (14.7"x9.8")
  • Product type: 1-Shot Stationary AOI
  • Parts inspection: Presence, Orientation (polarity), Shape, Offset, Text, Color
  • Camera/lens type: Digital Singe Lens CMOS camera with high resolution optical zoom lens
  • Sensor/Lens Resolution: 24Mp / 2100LP, 42Mp / 3600LP, 60Mp / 3600LP

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

Selective 3D Desktop Inspection Solution


  • Maximum PCB Size: 550x550mm (21.6”x21.6”)
  • Camera type: Digital color Thunderbolt interface 90 Fps
  • Camera Field Of View/ Resolution:    38.5x38.5mm(1.52”x1.52”)/18.75µm or 19.5x19.5mm(0.77”x0.77”)/10µm
  • Lens: Telecentric lens with built in prism for DOAL Lighting
  • Lighting system: Omnidirectional Quad LED rings: Side White, Side Red, Main, Line Sourced DOAL Diffused On Axis Lighting (Coaxial)
  • Minimum inspection component size: 01005" (0.4x0.2mm)(10µm resolution)

Conformal Coating Inspection- CCI

Conformal Coating Inspection- CCI

Conformal Coating Inspection- CCI

Conformal Coating Inspection- CCI

Conformal Coating Inspection- CCI

Conformal Coating Inspection

  • aximum PCB Size: 550x500 (21.7” x 19.7)
  • Parts inspection: Presence, Polarity, Offset, OCV, Conformal Coating, Presence, Absence, Splashes, Bubbles, Coverage
  • Camera type: 5MP CCD digital with USB 3 Vision
  • Camera Field Of View/ Resolution: 47 x 39 mm (1.8” x 1.53”) 19µm
  • Lighting system: Dual LED :White Main , 365 nm UV LED
  • Component Clearance (Top/ Bottom) : +60mm (1.6”)/-60mm (-2.2”)
