Automated Optical Inspection - MEK

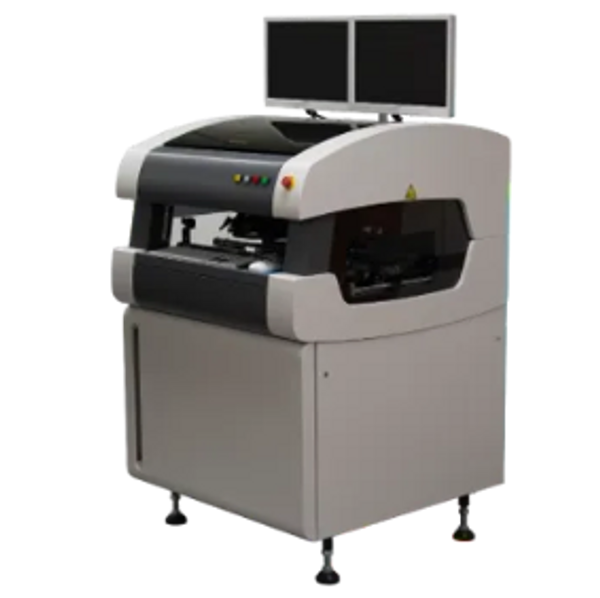

PowerSpector BTL: in line AOI (2D/3D)

PowerSpector BTL: in line AOI (2D/3D)

PowerSpector BTL: in line AOI (2D/3D)

PowerSpector BTL: in line AOI (2D/3D)

PowerSpector BTL: in line AOI (2D/3D)








SMT + THT (Top + Bottom) AOI


  • Maximum PCB Size: 550x550mm (21.6”x21.6”)
  • Camera type: Digital color Thunderbolt interface 90 Fps
  • Camera Field Of View/Resolution : 38.5x38.5mm/18.75µm or 19.5x19.5mm/10µm
  • Lens: Telecentric lens with built in prism for DOAL Lighting
  • Lighting system: Omnidirectional T Quad LED rings: Side White, Side Red, Main, Line Sourced DOAL (Diffused On Axis Lighting (Coaxial)
  • Minimum inspection component size: 01005" (0.4x0.2mm)(10µm resolution)
  • Component clearance (top): GTAz 30mm (1.2”)/ GDAz 60mm (2.4”)

SpectorBox: SMT+ THT AOI (Selective 3D)

SpectorBox: SMT+ THT AOI (Selective 3D)

SpectorBox: SMT+ THT AOI (Selective 3D)

SpectorBox: SMT+ THT AOI (Selective 3D)

SpectorBox: SMT+ THT AOI (Selective 3D)

Selective 3D Inspection Solution


  • Maximum PCB Size: 550x550mm (21.6”x21.6”)
  • Imaging principle: Synthetic Imaging, Spectral Analysis, Greyscale limits
  • Imaging parameter: Brightness, Contrast, Hue, Saturation via Filters
  • Main Camera type: 4.8 MP CCD Digital with USB 3 Vision
  • Main Camera FoV/Resolution: 36x30mm/15µm
  • Side cameras: 8 side cameras CL/USB3 Vision with Tilt-Shift custom lenses in 45/45 degree configuration
  • Lighting system: Omnidirectional Quad LED rings: Side, Main, Line Sourced DOAL, Side Camera White

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

PowerSpector: Desktop AOI (2D/3D)

Selective 3D Desktop Inspection Solution


  • Maximum PCB Size: 550x550mm (21.6”x21.6”)
  • Camera type: Digital color Thunderbolt interface 90 Fps
  • Camera Field Of View/ Resolution:    38.5x38.5mm(1.52”x1.52”)/18.75µm or 19.5x19.5mm(0.77”x0.77”)/10µm
  • Lens: Telecentric lens with built in prism for DOAL Lighting
  • Lighting system: Omnidirectional Quad LED rings: Side White, Side Red, Main, Line Sourced DOAL Diffused On Axis Lighting (Coaxial)
  • Minimum inspection component size: 01005" (0.4x0.2mm)(10µm resolution)
